Center Wave Length 1565nm Strain Sensor Optical Instruments Reflector Fiber Bragg Grating

1565nm Fiber Bragg Grating Strain Sensor - Optical Instruments Reflector for precise measurements. Our factory produces high-quality optical instruments.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Company Profile
Overview

Basic Info.

Model NO.
SY-1565
Customized
Customized
Certification
ISO9001
Brand
OEM
Product Name
Fiber Bragg Grating
Feature
High Stability, Reliability Length
Size
21cm*11cm*5cm
Weight
0.5kg
Transport Package
Plastic Bag/Carton
Specification
21cm*11cm*5cm
Trademark
SAMYON
Origin
China
HS Code
9031809090
Production Capacity
16000 Piece Per Month

Packaging & Delivery

Package Size
21.00cm * 11.00cm * 5.00cm
Package Gross Weight
0.500kg

Product Description



SY-1565 Fiber Bragg Grating

Product Description
Intruduction
We have two line with Fiber Laser system from Coherent and relative optical plate.Recently production capacity is 0.3million pcs each year;with 70 thousand pcs each single line.For common temperature FBG range from 80-120 Degree,we normally use Corning 28e optical fiber.If needs bearing higher temperature,there is ployimide coating optical fiber max 375 Celsius degree from Fibercore or relative other optical fiber.
If need more than 400 Celsius degree,it should use femoto fiber bragg grating which with special packages technology can upto 1000 celsius degree.We also can produce FBG with thin optical fiber 80um, 50um and microbend resistance coating optical fiber.Beside the Bragg Grating,we produce Chirped Fiber Grating,Long Period Fiber Grating,Phase Shift Fiber Grating,FBG Arrays and Laser FBG 2 arrays with certain central wavelength according to clients request.
We sell 70% of our Bared FBG during one year.And 30% will be packaged to relative FBG sensor Temperature sensor,Strain Gauge,Displacement Sensor,Accelerometer and so on.


Parameter Unit Values
Center Wave length nm 1510-1590
Wavelength Tolerance nm +/-0.2
FBG length mm 1-15
Reflectivity   5%-99%
Bandwidth at 3dB nm 0.1- 1
SLSR dB ≥15
Recoating -- Aorylate or Polyimide
Fiber type -- SMF-28e or Polyimide Fiber
Fiber termination -- Bare Fiber, FC/UPC, or FC/APC
Pigtail length m 2 (typical )
Operating Temp ºC SMF-28e Fiber: -5 -80
Polyimide Fiber: -40-80
Storage Temp ºC SMF-28e Fiber: -5 -80
Polyimide Fiber: -40-80
Proof test Kpsi ≥100

Applications
1. Telecommunication, Lasers and sensors, filter
2.Wavelength Division Multiplexing Transmission System
3. High tensile resistance and anti-electromagnetic interference

Features
High stability and reliability Length customized grating High SLSR

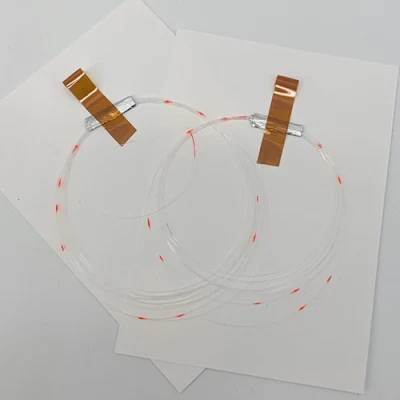

Center Wave Length 1565nm Strain Sensor Optical Instruments Reflector Fiber Bragg Grating

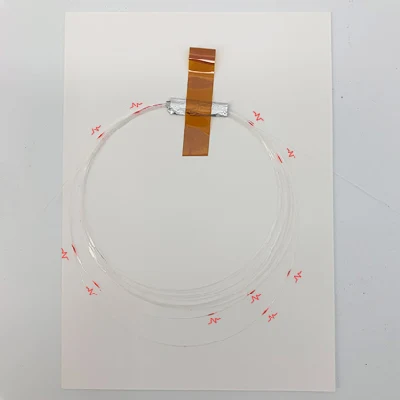

Center Wave Length 1565nm Strain Sensor Optical Instruments Reflector Fiber Bragg Grating

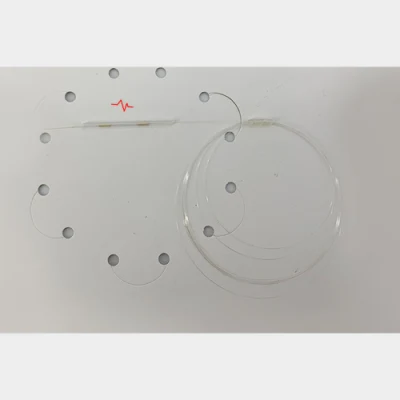

Center Wave Length 1565nm Strain Sensor Optical Instruments Reflector Fiber Bragg Grating



Product Parameters
Model
Center Wave length
(nm)
FBG length
(mm)
Reflectivity
Bandwidth
(nm)
SLSR
(dB)
Pigtail length
(m)
Price
SY-1530 1530
10 mm Recoating
Protection
>90% <0.25 10dB 2m USD15/piece
SY-1533 1533
SY-1535 1535
SY-1536 1536
SY-1539 1539
SY-1540 1540
SY-1542 1542
SY-1545 1545
SY-1548 1548
SY-1550 1550
SY-1551 1551
SY-1554 1554
SY-1555 1555
SY-1557 1557
SY-1560 1560
SY-1563 1563
SY-1565 1565
SY-1550A
1550
10mm
Bare grating
1.5m
