Auto Focus PCB Electronic Measuring Vm500 Video Microscope

Get precise measurements with the Auto Focus PCB Electronic Measuring Vm500 Video Microscope. As a factory, we offer top-quality precision measurement tools.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
VM-500
Transport Package
Plywood
Specification
CE
Trademark
SINOWON
Origin
Dongguan
HS Code
90318020
Production Capacity
20 Sets/Month

Product Description

Auto Focus Video Microscope  VM-500

Auto Focus PCB Electronic Measuring Vm500 Video Microscope


Application:

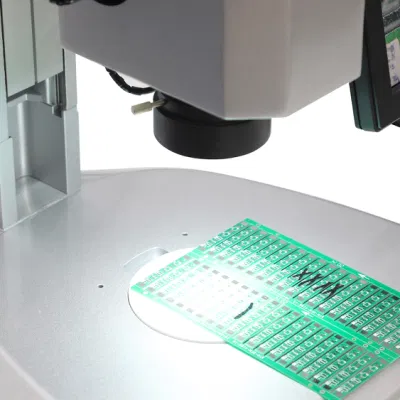

Incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection, biological anatomy, medical testing and other fields.
Auto Focus PCB Electronic Measuring Vm500 Video Microscope

Product Characteristics:
  1. Integral design, exquisite, fashion, generous;
  2. Built-in FULL HD sensor and VGA integrated camera, can directly connect with the monitor to realize video image and can also use SD card to take picture or record video, which integrate video observation and image storage;
  3. With high definition 0.7~4.5X parallel continue zoom lens, it is more convenient and fast to switch objective magnification;
  4. With adjustable LED surface reflection illumination, is able to control brightness independently;
  5. With 2 million pixel auto focus camera, no need to waste time for manual focus frequently.
Technical Specification:
Product Name Auto Focus Video Microscope
Model VM-500
Code# 451-450
Electronic Magnification 33.47X~215.19X( HDMI 16:9 21.5"Monitor;)
Optical Objective 0.7X~4.5X Zoom Lens
Zoom ratio:6.5:1
Camera Parameters 2 million pixel (1920*1080)
Image Size:1/2.8"
Frames Per Second:30fps
Camera Function Auto Focus
Cross Line
Photograph and Video Record
Output: HDMI
White Balance; Brightness Control; Digital Noise Reduction
Illumination Surface: Adjustable LED Surface Illumination
Ring Fiber Illumination Optional
Microscope  Stand  Z-axis Travel: 100mm
 Coarse Lifting System
Electrical Parameters AC90~240V;50~60HZ
Dimension 310*285*500 mm
Weight 6Kg
Accessories:
Product Name Specification
Microscope Main Body VM-500
Power Adapter DC5V(Camera),DC12V(Illumination)
Monitor Optional 4:3 21.5"
Operation Manual/Warranty Card/Certificate/Packing list VM-500
Auto Focus PCB Electronic Measuring Vm500 Video Microscope Auto Focus PCB Electronic Measuring Vm500 Video Microscope
